Product specifications
Technical data
Cat. No.VKI-1-JB-19
ProtectionFLP/ Exd, IP-66
Apparatus StandardsIS/IEC - 60079-1:2007, IS/IEC 60529:2001
CIMFR Certificate No.CIMFR/TC/P/3348
Rating40 Amp., 230V AC or upto 230V DC
Gas GroupZone 1 & 2 for Gas Group: IIC atmosphere only
ColourAs required
Body MaterialAluminium Alloy LM-6
Output Current30A

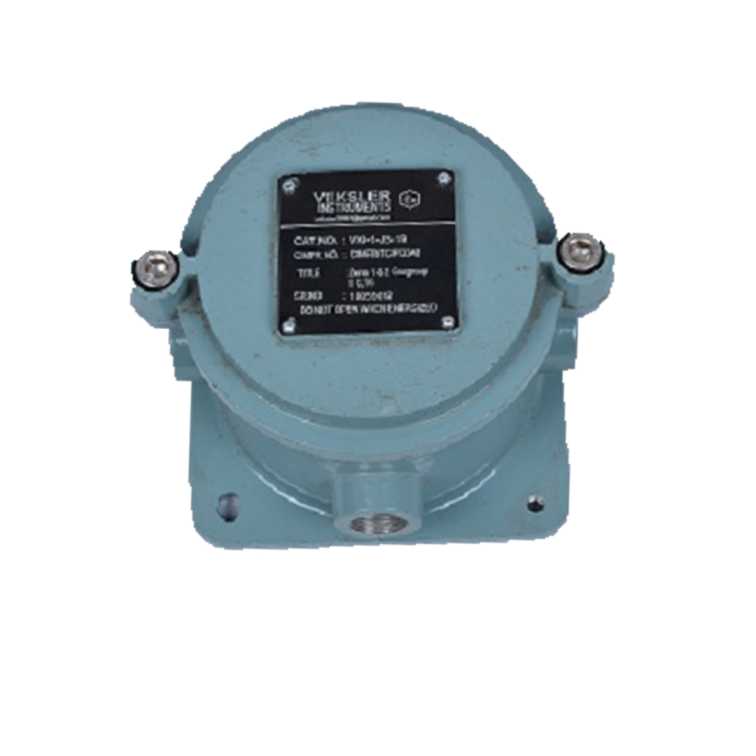

This junction box provides a protected place to join, loop and branch cables. It is made from die-cast LM-6 aluminium alloy with IP-66 protection and can be supplied in different sizes and entry arrangements.
Available in different sizes and dimensions to suit your installation.
Common uses
- Field instrument cable termination and looping
- Lighting and power distribution in plant areas
- Signal cable marshalling from field devices
- Cable branching in outdoor and washdown areas
How we can help
- Certificate and technical details listed on this page
- Pressure die-cast LM-6 aluminium alloy body
- Suitable for the listed Zone and gas group
- Options can be discussed for your installation
