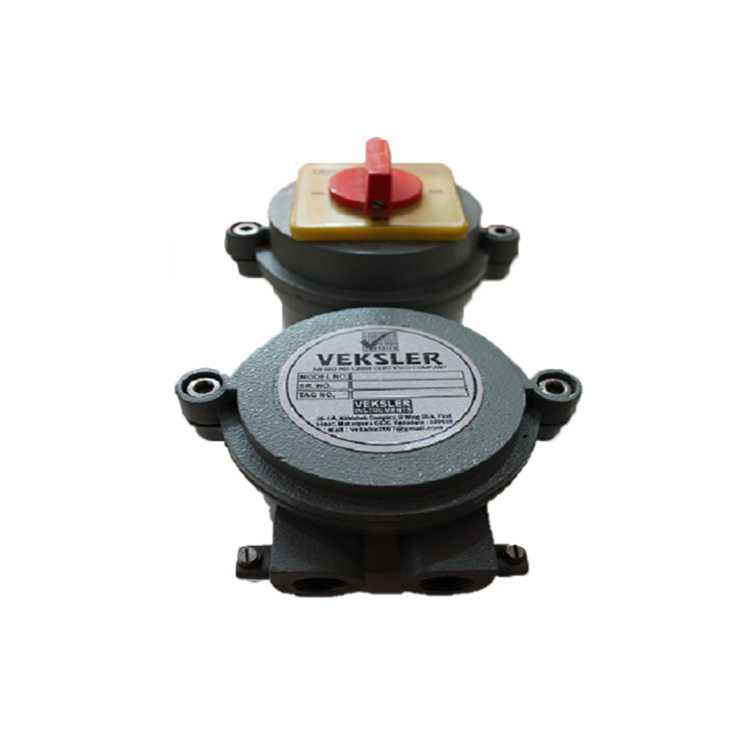

Rotary Switch
A local switch for isolating equipment or changing between supplies.
Product specifications
Technical data
Cat. No.VKI-1-RSD-19
ProtectionFLP/ Exd, IP-66
Apparatus StandardsIS/IEC - 60079-1:2007, IS/IEC 60529:2001
CIMFR Certificate No.CIMFR/TC/P/5078
Rating16A, 32A, 230V AC, 440V AC
Gas GroupZone 1 & 2 for Gas Group: IIC atmosphere only
Body MaterialAluminium Alloy LM-6
This rotary switch provides a nearby point for isolating equipment or changing between supplies. It is available with direct or indirect entry in an LM-6 aluminium enclosure with IP-66 protection.
Available with direct or indirect entry.
Common uses
- Motor isolation during maintenance
- Load changeover and selector duty
- Isolation of field instruments and heaters
- Lighting circuit control in hazardous areas
How we can help
- Certificate and technical details listed on this page
- Pressure die-cast LM-6 aluminium alloy body
- Suitable for the listed Zone and gas group
- Options can be discussed for your installation
