Control

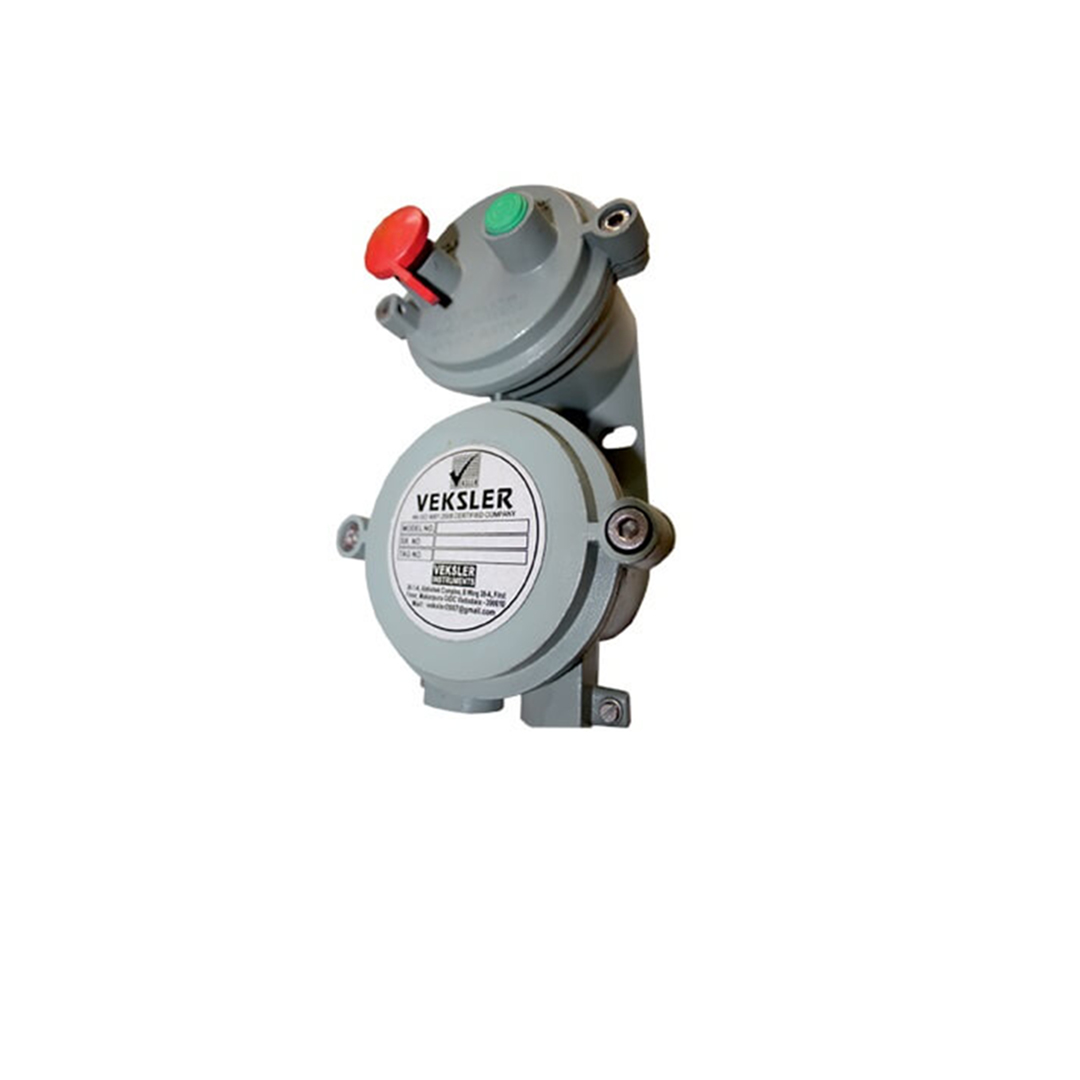

Push Button Station
A simple local control point for start, stop and indication functions.
Product specifications
Technical data
Cat. No.VKI-1-PB-19
ProtectionFLP/ Exd, IP-66
Apparatus StandardsIS/IEC - 60079-1:2007, IS/IEC 60529:2001
CIMFR Certificate No.CIMFR/TC/P/5078
Rating32Amps, 230V AC / 440V AC
Gas GroupZone 1 & 2 and Gas Group: IIC atmosphere only
Body MaterialAluminium Alloy LM-6
This push button station gives operators an easy-to-reach point for start, stop and indication controls. Its LM-6 aluminium enclosure has IP-66 protection for dusty, wet and outdoor locations.
Available as stop-only, start-stop, and start-stop with indication.
Common uses
- Start and stop control for pumps, agitators and blowers
- Emergency stop points along process lines
- Motor control in solvent and reactor areas
- Outdoor utility and effluent plant control
How we can help
- Certificate and technical details listed on this page
- Pressure die-cast LM-6 aluminium alloy body
- Suitable for the listed Zone and gas group
- Options can be discussed for your installation
Need help choosing?
