Lighting

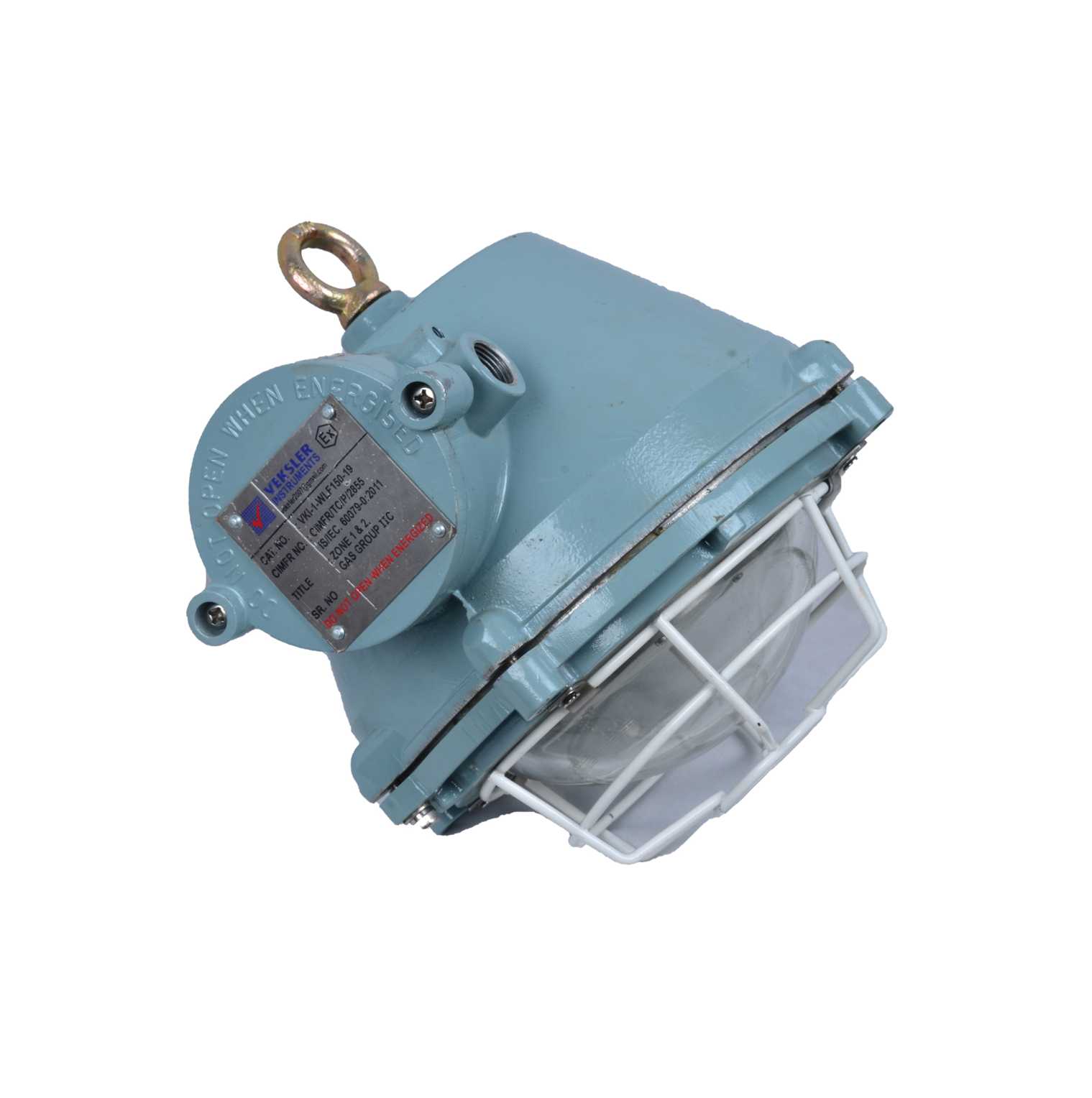

Well Glass Light Fitting
Lighting for industrial areas where a standard light fitting may not be suitable.
Product specifications
Technical data
Cat. No.VKI-1-WLF150-19
ProtectionFLP/ Exd, IP-66
Apparatus StandardsIS/IEC - 60079-1:2007, IS/IEC 60529:2001
CIMFR Certificate No.CIMFR/TC/P/2855
Rating60W LED, 70W HPSV, 80W HPMV & 2*18W CFL Lamp
Gas GroupZone 1 & 2 for Gas Group: IIC atmosphere only
Lighting ColourWhite
Voltage220-240V
Lighting TypeLED
Body MaterialAluminium Alloy LM-6
This well glass light fitting is made for industrial spaces that need dependable lighting in challenging conditions. Its LM-6 aluminium alloy body and IP-66 protection help it stand up to dust and water.
It is available up to 60W with two 3/4-inch ET entries. LED and CFL versions are available, including 30W, 45W and 60W LED options.
Common uses
- Chemical and pharmaceutical production areas
- Tank farms, pump houses and solvent storage areas
- Paint shops and spirit stores
- Outdoor plant areas
How we can help
- Certificate and technical details listed on this page
- Pressure die-cast LM-6 aluminium alloy body
- Suitable for the listed Zone and gas group
- Options can be discussed for your installation
